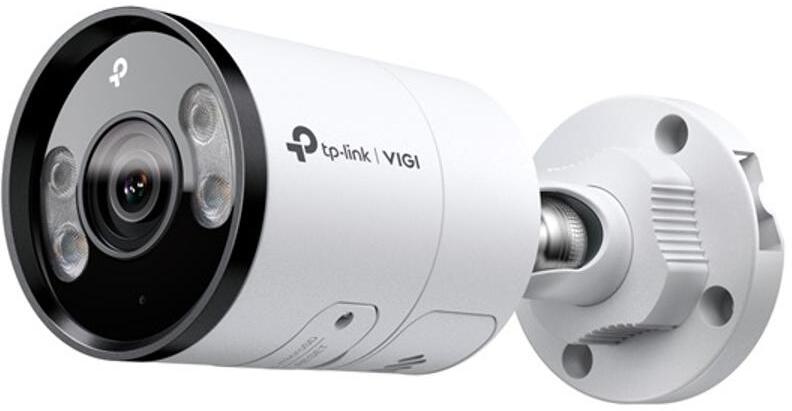

TP-LINK IP Kamera kültéri színes éjjellátó 5 Megapixel, 2.8mm Objektív, INSIGHT S455(2.8MM)

KameraKépérzékelő1/2.7 Progressive Scan CMOSShutter Speed1/3 to 1/10000 sSlow ShutterYesMin. szükséges megvilágítás0.005 Lux; 0 Lux with IR/White lightDay/Night MechanismIR Cut FilterDay/Night SwitchUnified/ Scheduled/ AutoLENSTypeFixed Focal LensFocal Length2.8/4 mmApertureF1.6FOV2.8 mm:
Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134°

4 mm:
Horizontal FOV: 88°, Vertical FOV: 46°, Diagonal FOV: 105.4°Lens MountM12*P 0.5DORI Distance2.8 mm
Detect: 64 m (210 ft)
Observe: 27 m (89 ft)
Recognize: 13 m (43 ft)
Identify: 6 m (20 ft)

4 mm
Detect: 80 m (262 ft)
Observe: 33 m (108 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)Angle Adjustment (Manual)RangePan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°ILLUMINATORIR LEDQuantity: 4
Range: 30m
Wavelength: 850nmWhite LEDQuantity: 4
Range: 30mIlluminator On/Off ControlAuto/Scheduled/Always on/Always offVIDEOMax. Resolution2880 X 1620Main StreamFrame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
2880x1620,2688x1520, 2304x1296, 2048x1280, 1920x1080,
1280x720

Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. Sub-StreamFrame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:
848x480, 704x576, 640x480, 640x360, 352x288, 320x240

Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. Bit Rate ControlCBR, VBRVideo CompressionMain Stream: H. 265+/H. 265/H. 264+/H. 264
Sub-Stream: H. 265/H. 264H. 264 TypeHigh ProfileH. 264+Main Stream SupportedH. 265 TypeMain ProfileH. 265+Main Stream SupportedVideo Bit RateMain Stream: 256 Kbps to 6 Mbps
Sub-Stream: 64 Kbps to 512 KbpsImageImage SettingsMirror
Brightness
Contrast
Saturation
Sharpness
Exposure
WDR
White Balance
Prevent Overexposure to Infrared Light
HLC Adjustable by Client SoftwareImage EnhancementBLC/3D DNR/HLC/SmartIRWide Dynamic Range120 dB

Note: When People & Vehicle Analytics is enabled, only DWDR is supported. SNR? 52 dBImage Parameters SwitchYesPrivacy MaskUp to 4 MasksROI1 RegionOSD SettingYesHangHangkommunikációTwo-Way AudioHangbemenetYesHangkimenetYesHangtö mörítésYesAudio Sampling Rate8KHzEnvironment Noise FilteringYesAudio Bit Rate64 Kbps(G. 711 alaw)HálózatSzabványTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARPONVIFYesAPIONVIF Profile S/T/GSimultaneous Live View3 Main Streams & 3 Sub-StreamsClientVIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMSWeb BrowserGoogle Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and aboveCloudYesBiztonságPassword Protection, HTTPS Encryption, IP Address Filter, Digest AuthenticationFigyelmeztetési és eseménykezelési vezérlésSmart EventIntrusion Detection
Line-Crossing Detection
Region Entering Detection
Region Exiting Detection
Object Abandoned Detection
Object Removal Detection
Loitering Detection
People Detection
Vehicle Detection
Abnormal Sound Detection
Scene Change DetectionBasic EventMotion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
Video Tampering Detection
Exception ( Illegal Login)Alarm LinkageMemory Card Video Recording
Message Push
Audible Warning
White Light FlashingLinkage MethodN/AOutput NotificationMessage PushDeep Learning FunctionPeople & Vehicle AnalyticsSearch and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier. §Fizikai kezelőfelületHálózati csatlakozás1 RJ45 10/100M Self-Adaptive Ethernet Port, PoEAlarmN/AReset ButtonYesPowerDC Power PortOn-board StorageBuilt-In Memory Card Slot, Support MicroSD Card, up to 512 GB**Built-in MicrophoneYes; Records Anything Going on within a 15-ft Radius of the CameraBuilt-in SpeakerYesAudioN/AÁltalánosOperating Temperature-30–60 °CStorage Temperature-40–60 °COperating Humidity95% or Less (Non-Condensing)Storage Humidity95% or Less (Non-Condensing)Csomagolás tartalmaVIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting AccessoriesMaterialMetalNet Weight0.48 KgPower Supply12V DC ± 5%, Max. 11 W, 5.5 mm Coaxial Power Plug
PoE: 802.3af/at, class 0, Max. 12 WProtectionIP67Product Dimensions (L x W x H)4.4 × 4.4 × 3.3 in (111 × 111 × 83.7 mm)CertificationsCE, NTRA, VCCI, KC, BSMI, FCC, IC

Így is ismerheti: INSIGHT S 455 2 8 MM, INSIGHTS45528MM, INSIGHT S455(2.8 MM)
