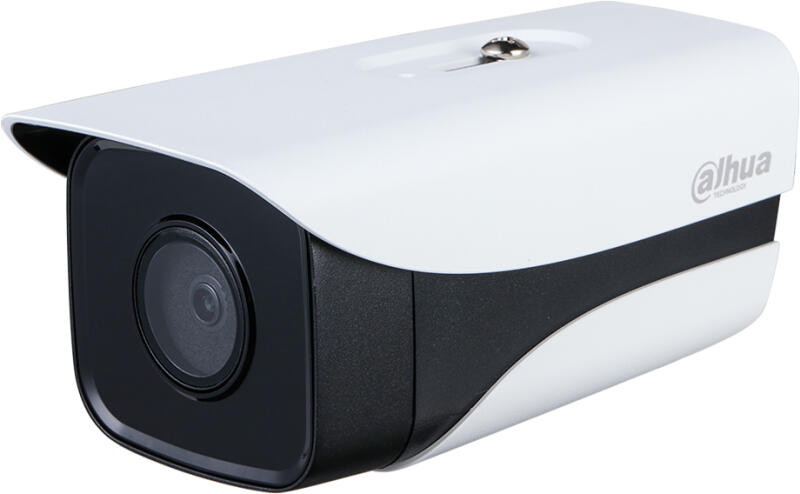

Dahua IPC-HFW3441M-AS-I2-0360B
Dahua IPC-HFW3441M-AS-I2-0360B
66 999 Ft
Ajánlataink Dahua IPC-HFW3441M-AS-I2-0360B termékre
Ajánlataink a termékre
Paraméterek, termékleírás - Dahua IPC-HFW3441M-AS-I2-0360B
Galéria - Dahua IPC-HFW3441M-AS-I2-0360B
Árdiagram
Áttekintést kaphat a termék árának alakulásáról.
Árfigyelő
Árfigyelő szolgáltatásunk értesíti, ha a termék a megjelölt összeg alá esik.
Aktuális legalacsonyabb ár: 66 999 Ft
További termékek a kategóriából
További Dahua termékek: Dahua IP kamera
Termékleírás
| Kialakítás | Csőkamera |
| Felbontás | 4 MPx |
| Minimális fókusztávolság | 3.6 mm |
| Maximális fókusztávolság | 3.6 mm |
| IP védettség | IP67 |
| Éjjellátó funkció | Van |
Hibát talált a leírásban vagy az adatlapon? Jelezze nekünk!
Camera
Image Sensor
1/3 4Megapixel progressive CMOS
Max. Resolution
2688 (H) ×1520 (V)
ROM
128 MB
RAM
512 MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100000 s
Min. Illumination
0.005 Lux@F1.6 (Color, 30IRE)
0.0005 Lux@F1.6 (B/W, 30IRE)
0 Lux (Illuminator on)
S/N Ratio
> 56 dB
Illumination Distance
80 m (262.5 ft)
Illuminator On/Off Control
Auto/Manual
IR LEDs Number
2 (IR LED)
Lens
Lens Type
Fixed-focal
Mount Type
M12
Focal Length
3.6 mm; 6 mm; 8 mm; 12 mm
Max. Aperture
3.6 mm, 6 mm, 8 mm: F1.6
12 mm: F2.0
Field of View
3.6 mm: Horizontal: 84°; vertical: 45°; diagonal: 100°
6 mm: Horizontal: 52°; vertical: 28°; diagonal: 61°
8 mm: Horizontal: 40°; vertical: 23°; diagonal: 45°
12 mm: Horizontal: 24°; vertical: 14°; diagonal: 29°
Iris Type
Fixed
Close Focus Distance
3.6 mm: 1.6 m (5.2 ft)
6 mm: 3.2 m (10.5 ft)
8 mm: 4.5 m (14.8 ft)
12 mm: 10.3 m (33.8 ft)
DORI Distance
Lens
Detect
Observe
Recognize
Identify
3.6mm
80.0 m
(262.5 ft)
32.0 m
(105.0 ft)
16.0 m
(52.5 ft)
8.0 m
(26.3 ft)
6mm
120.0 m (393.7 ft)
48.0 m
(157.5 ft)
24.0 m
(78.7 ft)
12.0 m (39.4ft)
8 mm
160.0 m (524.9 ft)
64.0 m
(210.0 ft)
32.0 m
(105.0 ft)
16.0 m
(52.5 ft)
12 mm
240 m
(787.4 ft)
96 m
(315.0 ft)
48 m
(157.5 ft)
24 m
(78.7 ft)
Professional, Intelligent
Perimeter Protection
Tripwire; intrusion (Recognition of human and vehicle)
Intelligent Search
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression
H. 265; H. 264; H. 264H; H. 264B; MJPEG(only supported
by sub stream)
Smart Codec
Smart H. 265+/ Smart H. 264+
Video Frame Rate
Main stream (2688 × 1520@1–25/30 fps)
sub stream (704 × 576@1–25 fps/704 × 480@1–30 fps)
third stream (1280 × 720@1–25/30 fps)
Stream Capability
3 streams
Resolution
4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control
CBR/VBR
Video Bit Rate
H. 264: 3 Kbps–8192 Kbps
H. 265: 3 Kbps–8192 Kbps
Day/Night
Auto(ICR)/Color/B/W
BLC
Yes
HLC
Yes
WDR
120 dB
White Balance
Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control
Auto/Manual
Noise Reduction
3D DNR
Motion Detection
OFF/ON (4 areas, rectangular)
Region of Interest(RoI)
Yes (4 areas)
Smart Illumination
Yes
Image Rotation
0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower. )
Mirror
Yes
Privacy Masking
4 areas
Audio
Audio Compression
G. 711a; G. 711Mu; G726
Alarm
Alarm Event
No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; input abnormal; intensity change; tripwire; intrusion; SMD
Network
Network
RJ-45 (10/100 Base-T)
SDK and API
Yes
Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP
Cyber Security
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X. 509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Interoperability
ONVIF(Profile S/Profile G/Profile T);CGI;P2P;Milestone;
Genetec
Scene Self-adaptation (SSA)
Yes
User/Host
20 (Total bandwidth: 64 M)
Storage
FTP; SFTP; Micro SD Card (support max. 256 G); NAS
Browser
IE: IE8, IE9, IE11
Chrome
Firefox
Management Software
Smart PSS, DSS, DMSS
Mobile Phone
IOS; Android
Certification
Certifications
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No. 60950-1-07
Port
Audio Input
1-channel (RCA port)
Audio Output
1-channel (RCA port)
Alarm Input
2 channels in: 5mA 3V–5V DC
Alarm Output
2 channels out: 300mA 12V DC
Power
Power Supply
12V DC/PoE (802.3af)
Power Consumption
Így is ismerheti: IPC HFW 3441 M AS I 2 0360 B, IPCHFW3441MASI20360B, IPC HFW3441M AS I2 0360B, IPC HFW3441M-AS-I2-0360B, IPC-HFW3441M-AS-I2-0360 B
![]()
Image Sensor
1/3 4Megapixel progressive CMOS
Max. Resolution
2688 (H) ×1520 (V)
ROM
128 MB
RAM
512 MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100000 s
Min. Illumination
0.005 Lux@F1.6 (Color, 30IRE)
0.0005 Lux@F1.6 (B/W, 30IRE)
0 Lux (Illuminator on)
S/N Ratio
> 56 dB
Illumination Distance
80 m (262.5 ft)
Illuminator On/Off Control
Auto/Manual
IR LEDs Number
2 (IR LED)
Lens
Lens Type
Fixed-focal
Mount Type
M12
Focal Length
3.6 mm; 6 mm; 8 mm; 12 mm
Max. Aperture
3.6 mm, 6 mm, 8 mm: F1.6
12 mm: F2.0
Field of View
3.6 mm: Horizontal: 84°; vertical: 45°; diagonal: 100°
6 mm: Horizontal: 52°; vertical: 28°; diagonal: 61°
8 mm: Horizontal: 40°; vertical: 23°; diagonal: 45°
12 mm: Horizontal: 24°; vertical: 14°; diagonal: 29°
Iris Type
Fixed
Close Focus Distance
3.6 mm: 1.6 m (5.2 ft)
6 mm: 3.2 m (10.5 ft)
8 mm: 4.5 m (14.8 ft)
12 mm: 10.3 m (33.8 ft)
DORI Distance
Lens
Detect
Observe
Recognize
Identify
3.6mm
80.0 m
(262.5 ft)
32.0 m
(105.0 ft)
16.0 m
(52.5 ft)
8.0 m
(26.3 ft)
6mm
120.0 m (393.7 ft)
48.0 m
(157.5 ft)
24.0 m
(78.7 ft)
12.0 m (39.4ft)
8 mm
160.0 m (524.9 ft)
64.0 m
(210.0 ft)
32.0 m
(105.0 ft)
16.0 m
(52.5 ft)
12 mm
240 m
(787.4 ft)
96 m
(315.0 ft)
48 m
(157.5 ft)
24 m
(78.7 ft)
Professional, Intelligent
Perimeter Protection
Tripwire; intrusion (Recognition of human and vehicle)
Intelligent Search
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression
H. 265; H. 264; H. 264H; H. 264B; MJPEG(only supported
by sub stream)
Smart Codec
Smart H. 265+/ Smart H. 264+
Video Frame Rate
Main stream (2688 × 1520@1–25/30 fps)
sub stream (704 × 576@1–25 fps/704 × 480@1–30 fps)
third stream (1280 × 720@1–25/30 fps)
Stream Capability
3 streams
Resolution
4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control
CBR/VBR
Video Bit Rate
H. 264: 3 Kbps–8192 Kbps
H. 265: 3 Kbps–8192 Kbps
Day/Night
Auto(ICR)/Color/B/W
BLC
Yes
HLC
Yes
WDR
120 dB
White Balance
Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control
Auto/Manual
Noise Reduction
3D DNR
Motion Detection
OFF/ON (4 areas, rectangular)
Region of Interest(RoI)
Yes (4 areas)
Smart Illumination
Yes
Image Rotation
0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower. )
Mirror
Yes
Privacy Masking
4 areas
Audio
Audio Compression
G. 711a; G. 711Mu; G726
Alarm
Alarm Event
No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; input abnormal; intensity change; tripwire; intrusion; SMD
Network
Network
RJ-45 (10/100 Base-T)
SDK and API
Yes
Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP
Cyber Security
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X. 509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Interoperability
ONVIF(Profile S/Profile G/Profile T);CGI;P2P;Milestone;
Genetec
Scene Self-adaptation (SSA)
Yes
User/Host
20 (Total bandwidth: 64 M)
Storage
FTP; SFTP; Micro SD Card (support max. 256 G); NAS
Browser
IE: IE8, IE9, IE11
Chrome
Firefox
Management Software
Smart PSS, DSS, DMSS
Mobile Phone
IOS; Android
Certification
Certifications
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No. 60950-1-07
Port
Audio Input
1-channel (RCA port)
Audio Output
1-channel (RCA port)
Alarm Input
2 channels in: 5mA 3V–5V DC
Alarm Output
2 channels out: 300mA 12V DC
Power
Power Supply
12V DC/PoE (802.3af)
Power Consumption
Így is ismerheti: IPC HFW 3441 M AS I 2 0360 B, IPCHFW3441MASI20360B, IPC HFW3441M AS I2 0360B, IPC HFW3441M-AS-I2-0360B, IPC-HFW3441M-AS-I2-0360 B
