Dahua IPC-HFW3241DF-AS-4G-NL668-0280B
Dahua IPC-HFW3241DF-AS-4G-NL668-0280B
164 999 Ft-tól
2 ajánlat
Ajánlataink Dahua IPC-HFW3241DF-AS-4G-NL668-0280B termékre
Ajánlataink a termékre

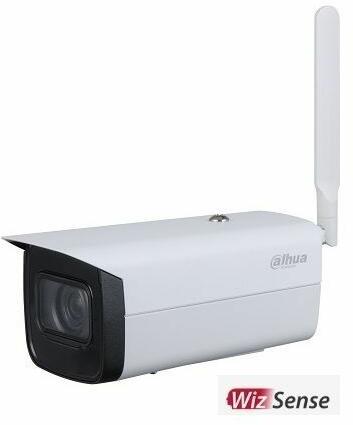

Dahua IP kamera IPC-HFW3241DF-AS-4G-NL668-0280B, 2mp, 2, 8mm objektív, IR 50m, MicroSD kártya, Beépített mikrofon, Alacsony fénysűrűség és nagy felbontású kép (IPC-HFW3241DF-AS-4G-NL668-0280B) (IPC-HF
164 999 Ft
Ingyenes kiszállítás
Részletek a boltban
Paraméterek, termékleírás - Dahua IPC-HFW3241DF-AS-4G-NL668-0280B
Galéria - Dahua IPC-HFW3241DF-AS-4G-NL668-0280B
Árdiagram
Áttekintést kaphat a termék árának alakulásáról.
Árfigyelő
Árfigyelő szolgáltatásunk értesíti, ha a termék a megjelölt összeg alá esik.
Aktuális legalacsonyabb ár: 164 999 Ft
További termékek a kategóriából
További Dahua termékek: Dahua IP kamera
Termékleírás
| Kialakítás | Csőkamera |
| Energiaforrás | Hálózat |
| Felbontás | 2 MPx |
| Minimális fókusztávolság | 2.8 mm |
| Maximális fókusztávolság | 2.8 mm |
| IP védettség | IP67 |
Hibát talált a leírásban vagy az adatlapon? Jelezze nekünk!
Camera
Image Sensor
1/2.8 CMOS
Effective Pixels
1920 (H) × 1080 (V)
ROM
128 MB
RAM
512 MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100,000 s
Min. Illumination
0.002 Lux@F1.6(Color, 30IRE)
0.0002 Lux@F1.6(B/W, 30IRE)
0 lux (Illuminator on)
S/N Ratio
> 56 dB
Illumination Distance
50 m (273 ft) (IR)
Illuminator On/Off Control
Auto; Manual
Illuminator Number
2 (IR LED)
Pan/Tilt/Rotation Range
Pan: 0°–360°
Tilt: –60°–0°
Rotation: 0°–360°
Lens
Lens Type
Fixed-focal
Mount Type
M12
Focal Length
2.8mm; 3.6mm; 6mm
Max. Aperture
2.8mm:F1.6
3.6mm:F1.6
6mm:F1.6
Field of View
2.8 mm: Horizontal 107° × Vertical 56° × Diagonal 127°
3.6 mm: Horizontal 88° × Vertical 44° × Diagonal 105°
6 mm: Horizontal 54° × Vertical 29° × Diagonal 63°
Iris Type
Fixed
Close Focus Distance
2.8 mm: 0.7 m (2.5 ft)
3.6 mm: 1.3 m (4.25 ft)
6 mm: 2.8 m (9.15 ft)
DORI Distance
Lens
Detect
Observe
Recognize
Identify
2.8 mm
43.9 m
(144 ft)
17.5 m
(57.4 ft)
8.8 m
(28.8 ft)
4.4 m
(14.4 ft)
3.6 mm
58.9 m
(193 ft)
23.6 m
(77.4 ft)
11.8 m
(38.4 ft)
5.9 m
(19.4 ft)
6 mm
88.3 m
(289.6 ft)
35.3 m
(115.8 ft)
17.7 m
(58 ft)
8.8 m
(28.8 ft)
Professional, Intelligent
Intelligent Search
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
SMD 3.0
Less false alarm, longer detection distance
IVS (Perimeter Protection)
Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
Smart Search
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression
H. 265; H. 264; H. 264H; H. 264B; MJPEG (Only supported by the sub stream)
Smart Codec
Smart H. 265+; Smart H. 264+
AI Coding
AI Coding AI H. 265; AI H. 264
Video Frame Rate
Main stream: 1920 × 1080@(1 fps–30 fps)
Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
Third stream:1920 × 1080@(1 fps–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability
3 streams
Resolution
1080p (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288)
Bit Rate Control
CBR; VBR
Video Bit Rate
H. 264:512kbps -8192kbps
H. 265:256kbps -7424kbps
Day/Night
Auto (ICR)/Color/B/W
BLC
Yes
HLC
Yes
WDR
120 dB
White Balance
Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control
Auto; manual
Noise Reduction
3D NR
Motion Detection
OFF/ON (4 areas, rectangular)
Region of Interest (RoI)
Yes (4 areas)
Image Rotation
0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower)
Mirror
Yes
Privacy Masking
8 areas
Audio
Audio Compression
PCM; G. 711a; G. 711Mu; G. 726; G. 723
Built-in MIC
Yes
Alarm
Alarm Event
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception
Network
Network
RJ-45 (10/100 Base-T)
SDK and API
Yes
Cyber Security
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X. 509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Network Protocol
IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Interoperability
ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone
User/Host
20 (Total bandwidth: 64 M)
Storage
FTP;SFTP; Micro SD card (support max. 256 GB); NAS
Browser
IE: IE8/9/11
Chrome
Firefox
Management Software
Smart PSS;DSS;DMSS
Mobile Client
iOS;Android
4G
4G_LTE: B1/B3/B5/B7/B8/B20/B28/B38/B40/B41
3G_WCDMA : B1/B5/B8
2G_GSM :B3/B5/B8
Certification
Certifications
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
Port
RS-485
1 (baud rate range:1200 bps–115200 bps)
Audio Input
1 channel (RCA port)
Audio Output
1 channel (RCA port)
Alarm Input
2 channels in: 5 mA 3 V–5 VDC
Alarm Output
2 channels out: 300 mA 12 VDC
Power
Power Supply
12 VDC
Power Consumption
Basic: 3.3 W (12 VDC);
Max. (WDR+H. 265+IR+4G): 5.9W (12 VDC)
Environment
Operating Temperature
–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity
≤ 95%
Storage Temperature
–30 °C to +70 °C (–22 °F to +163 °F)
Protection
IP67
Structure
Casing
Metal + plastic
Dimensions
227.6 mm × 204.2mm × 87.2 mm (9.0"" × 8.0"" × 3.4"")
Net Weight
945 g (2.1 lb)
Gross Weight
1440 g (3.1 lb)
Így is ismerheti: IPC HFW 3241 DF AS 4 G NL 668 0280 B, IPCHFW3241DFAS4GNL6680280B, IPC HFW3241DF AS 4G NL668 0280B, IPC HFW3241DF-AS-4G-NL668-0280B, IPC-HFW3241DF-AS-4G-NL668-0280 B
![]()
