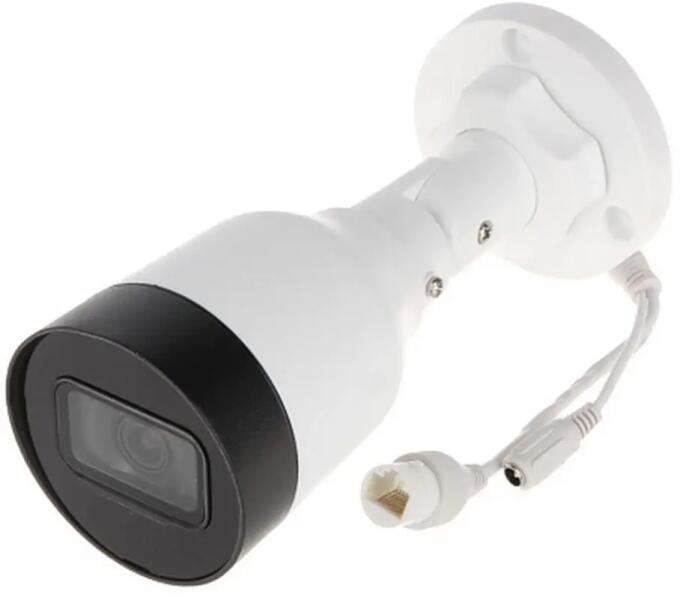

Dahua IPC-HFW1230S1-0280B-S5
Dahua IPC-HFW1230S1-0280B-S5
29 499 Ft
Ajánlataink Dahua IPC-HFW1230S1-0280B-S5 termékre
Ajánlataink a termékre
Paraméterek, termékleírás - Dahua IPC-HFW1230S1-0280B-S5
Galéria - Dahua IPC-HFW1230S1-0280B-S5
Árdiagram
Áttekintést kaphat a termék árának alakulásáról.
Árfigyelő
Árfigyelő szolgáltatásunk értesíti, ha a termék a megjelölt összeg alá esik.
Aktuális legalacsonyabb ár: 29 499 Ft
További termékek a kategóriából
További Dahua termékek: Dahua IP kamera
Termékleírás
| Kialakítás | Csőkamera |
| Energiaforrás | Hálózat és PoE |
| Felbontás | 2 MPx |
| Minimális fókusztávolság | 2.8 mm |
| Maximális fókusztávolság | 2.8 mm |
| IP védettség | IP67 |
| Éjjellátó funkció | Van |
Hibát talált a leírásban vagy az adatlapon? Jelezze nekünk!
Camera
Image Sensor
1/2.8"" CMOS
Max. Resolution
1920 (H) × 1080 (V)
ROM
16 MB
RAM
64 MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100000 s
Min. Illumination
0.01 Lux @F2.0
S/N Ratio
>56 dB
Illumination Distance
30 m (98.4 ft)
Illuminator On/Off Control
Auto/Manual
Illuminator Number
1 (IR LED)
Pan/Tilt/Rotation Range
Pan: 0° to 360°
Tilt: 0° to 90°
Rotation: 0° to 360°
Lens
Lens Type
Fixed-focal
Lens Mount
M12
Focal Length
2.8 mm; 3.6 mm
Max. Aperture
2.8 mm: F2.0
3.6 mm: F2.0
Field of View
2.8 mm: Horizontal: 102°; Vertical: 54°; Diagonal: 120°
3.6 mm: Horizontal: 84°; Vertical: 45°; Diagonal: 100°
Iris Control
Fixed
Close Focus Distance
2.8 mm: 0.5 m (1.6 ft)
3.6 mm: 0.8 m (2.6 ft)
DORI Distance
Lens
Detect
Observe
Recognize
Identify
2.8 mm
38.6 m
(126.6 ft)
15.4 m
(50.5 ft)
7.7 m
( 25.3 ft)
3.9 m
(12.8 ft)
3.6 mm
49.7 m
(163.1 ft)
19.9 m
(65.3 ft)
9.9 m
(32.5 ft)
5.0 m
(16.4 ft)
Video
Video Compression
H. 265; H. 264; H. 264B; MJPEG (only supported by the sub stream)
Smart Codec
Smart H. 265+/Smart H. 264+
Video Frame Rate
Main Stream:
1920 × 1080 (1 fps–25/30 fps)
Sub stream:
704 × 576 (1 fps–25 fps)
704 × 480 (1 fps–30 fps)
Stream Capability
2 streams
Resolution
1080p (1920 × 1080); 1.3M(1280 × 960);720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control
CBR/VBR
Video Bit Rate
H. 264: 32 kbps–6144 kbps
H. 265: 12 kbps–6400 kbps
Day/Night
Auto (ICR)/Color/B/W
BLC
Yes
HLC
Yes
WDR
DWDR
White Balance
Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control
Auto/Manual
Noise Reduction
3D NR
Motion Detection
OFF/ON (4 areas, rectangular)
Region of Interest (RoI)
Yes (4 areas)
Smart Illumination
Yes
Image Rotation
0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)
Mirror
Yes
Privacy Masking
4 areas
Alarm
Alarm Event
Network disconnection; IP conflict; illegal access; motion detection; video tampering; safety exception
Network
Network
RJ-45 (10/100 Base-T)
SDK and API
Yes
Cyber Security
Video encryption;configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X. 509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade
Network Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast
Interoperability
ONVIF (Profile S/Profile T); CGI; P2P; Genetec
User/Host
6 (Total bandwidth: 36 M)
Storage
FTP
Browser
IE
Chrome
Firefox
Management Software
Smart PSS; DSS; DMSS
Mobile Client
IOS; Android
Certification
Certifications
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
Power
Power Supply
12V DC/PoE (802.3af)
Power Consumption
Basic power consumption: 1.4W (12V DC); 2.2W (PoE)
Max. power consumption (ICR + H. 265+IR intensity): 3.3W (12V DC); 4.3W (PoE)
Environment
Operating Conditions
-40°C to +60°C (-40°F to +140°F)/less than ≤ 95%
Storage Temperature
-40°C to +60°C (-40°F to +140°F)
Protection
IP67
Structure
Casing
Metal + plastic
Product Dimensions
162.6 mm × Φ70 mm (6.4"" × Φ2.8"")
Net Weight
0.22 kg (0.4 lb)
Gross Weight
0.34 kg (0.7 lb)
Így is ismerheti: IPC HFW 1230 S 1 0280 B S 5, IPCHFW1230S10280BS5, IPC HFW1230S1 0280B S5, IPC HFW1230S1-0280B-S5, IPC-HFW1230S1-0280B-S 5
![]()
