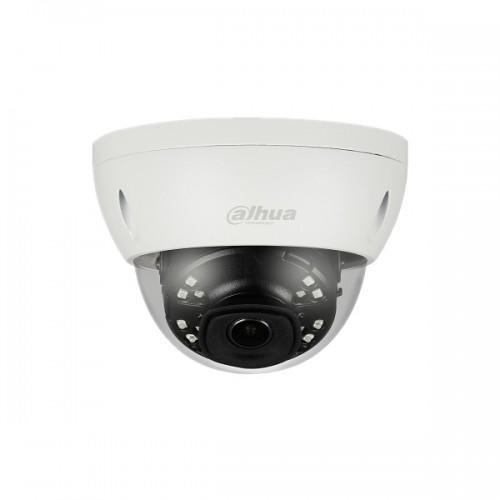

Dahua IPC-HDBW4231E-ASE-0280B
Dahua IPC-HDBW4231E-ASE-0280B
45 999 Ft
Ajánlataink Dahua IPC-HDBW4231E-ASE-0280B termékre
Ajánlataink a termékre
Paraméterek, termékleírás - Dahua IPC-HDBW4231E-ASE-0280B
Galéria - Dahua IPC-HDBW4231E-ASE-0280B
Árdiagram
Áttekintést kaphat a termék árának alakulásáról.
Árfigyelő
Árfigyelő szolgáltatásunk értesíti, ha a termék a megjelölt összeg alá esik.
Aktuális legalacsonyabb ár: 45 999 Ft
További termékek a kategóriából
További Dahua termékek: Dahua IP kamera
Termékleírás
| Kialakítás | Dóm kamera |
| Energiaforrás | Hálózat és PoE |
| Felbontás | 2 MPx |
| Minimális fókusztávolság | 2.8 mm |
| Maximális fókusztávolság | 2.8 mm |
| IK védettség | IK10 |
| IP védettség | IP67 |
| Éjjellátó funkció | Van |
Hibát talált a leírásban vagy az adatlapon? Jelezze nekünk!
Camera
Image Sensor
1/2.8 2Megapixel progressive scan CMOS
Effective Pixels
1920(H)x1080(V)
RAM/ROM
256MB/32MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1/3(4)~1/100000s
Minimum Illumination
0.007Lux/F1.6( Color, 1/3s, 30IRE)
0.06Lux/F1.6( Color, 1/30s, 30IRE)
0Lux/F1.6(IR on)
S/N Ratio
More than 50dB
IR Distance
Distance up to 30m (98ft)
IR On/Off Control
Auto/ Manual
IR LEDs
18
Lens
Lens Type
Fixed
Mount Type
Board-in
Focal Length
2.8mm (3.6mm, 6mm optional）
Max. Aperture
F1.6 (F1.6, F1.6)
Angle of View
H: 110° (87°, 52°), V:58° (46°, 30°)
Optical Zoom
N/A
Focus Control
Fixed
Close Focus Distance
0.7m(1.2m, 2.4m)
DORI Distance
Lens
Detect
Observe
Recognize
Identify
2.8 mm
43m(141ft)
17m(56ft)
9m(30ft)
4m(13ft)
3.6 mm
55m(180ft)
22m(72ft)
11m(36ft)
6m(20ft)
6.0 mm
83m(289ft)
33m(108ft)
17m(56ft)
8m(26ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range
Pan:0˚~355˚; Tilt:0˚~65˚; Rotation:0˚~355˚
Intelligence
IVS
Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions
Face Detection
Video
Compression
H. 265+/H. 265/H. 264+/H. 264
Streaming Capability
3 Streams
Resolution
1080P(1920x1080)/1.3M(1280x960)/ 720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/CIF(352×288/352×240)
Frame Rate
Main Stream: 1080P(1~50/60fps)
Sub Stream: D1(1~50/60fps)
Third Stream: 1080P(1~25/30fps)
Bit Rate Control
CBR/VBR
Bit Rate
H. 264: 24K ~ 10240Kbps
H. 265: 14K ~ 9984Kbps
Day/Night
Auto(ICR) / Color / B/W
BLC Mode
BLC / HLC / WDR(120dB)
White Balance
Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control
Auto/Manual
Noise Reduction
3D DNR
Motion Detetion
Off / On (4 Zone, Rectangle)
Region of Interest
Off / On (4 Zone)
Electronic Image Stabilization (EIS)
N/A
Smart IR
Support
Defog
N/A
Digital Zoom
16x
Flip
0°/90°/180°/270°
Mirror
Off / On
Privacy Masking
Off / On (4 Area, Rectangle)
Audio
Compression
G. 711a/ G. 711Mu/ AAC/ G. 726
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;
FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;
UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;
IGMP; SNMP
Interoperability
ONVIF, PSIA, CGI
Streaming Method
Unicast / Multicast
Max. User Access
10 Users /20 Users
Edge Storage
NAS
Local PC for instant recording
Mirco SD card 128GB
Web Viewer
IE, Chrome, Firefox, Safari
Management Software
Smart PSS, DSS, Easy4ip
Smart Phone
IOS, Android
Certifications
Certifications
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
Interface
Video Interface
N/A
Audio Interface
1/1 channel In/Out
RS485
N/A
Alarm
1 channel In: 5mA 5VDC
1 channel Out: 300mA 12VDC
Electrical
Power Supply
DC12V, PoE (802.3af)(Class 0)
Power Consumption
Így is ismerheti: IPC HDBW 4231 E ASE 0280 B, IPCHDBW4231EASE0280B, IPC HDBW4231E ASE 0280B, IPC HDBW4231E-ASE-0280B, IPC-HD BW4231E-ASE-0280 B
![]()
Image Sensor
1/2.8 2Megapixel progressive scan CMOS
Effective Pixels
1920(H)x1080(V)
RAM/ROM
256MB/32MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1/3(4)~1/100000s
Minimum Illumination
0.007Lux/F1.6( Color, 1/3s, 30IRE)
0.06Lux/F1.6( Color, 1/30s, 30IRE)
0Lux/F1.6(IR on)
S/N Ratio
More than 50dB
IR Distance
Distance up to 30m (98ft)
IR On/Off Control
Auto/ Manual
IR LEDs
18
Lens
Lens Type
Fixed
Mount Type
Board-in
Focal Length
2.8mm (3.6mm, 6mm optional）
Max. Aperture
F1.6 (F1.6, F1.6)
Angle of View
H: 110° (87°, 52°), V:58° (46°, 30°)
Optical Zoom
N/A
Focus Control
Fixed
Close Focus Distance
0.7m(1.2m, 2.4m)
DORI Distance
Lens
Detect
Observe
Recognize
Identify
2.8 mm
43m(141ft)
17m(56ft)
9m(30ft)
4m(13ft)
3.6 mm
55m(180ft)
22m(72ft)
11m(36ft)
6m(20ft)
6.0 mm
83m(289ft)
33m(108ft)
17m(56ft)
8m(26ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range
Pan:0˚~355˚; Tilt:0˚~65˚; Rotation:0˚~355˚
Intelligence
IVS
Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions
Face Detection
Video
Compression
H. 265+/H. 265/H. 264+/H. 264
Streaming Capability
3 Streams
Resolution
1080P(1920x1080)/1.3M(1280x960)/ 720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/CIF(352×288/352×240)
Frame Rate
Main Stream: 1080P(1~50/60fps)
Sub Stream: D1(1~50/60fps)
Third Stream: 1080P(1~25/30fps)
Bit Rate Control
CBR/VBR
Bit Rate
H. 264: 24K ~ 10240Kbps
H. 265: 14K ~ 9984Kbps
Day/Night
Auto(ICR) / Color / B/W
BLC Mode
BLC / HLC / WDR(120dB)
White Balance
Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control
Auto/Manual
Noise Reduction
3D DNR
Motion Detetion
Off / On (4 Zone, Rectangle)
Region of Interest
Off / On (4 Zone)
Electronic Image Stabilization (EIS)
N/A
Smart IR
Support
Defog
N/A
Digital Zoom
16x
Flip
0°/90°/180°/270°
Mirror
Off / On
Privacy Masking
Off / On (4 Area, Rectangle)
Audio
Compression
G. 711a/ G. 711Mu/ AAC/ G. 726
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;
FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;
UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;
IGMP; SNMP
Interoperability
ONVIF, PSIA, CGI
Streaming Method
Unicast / Multicast
Max. User Access
10 Users /20 Users
Edge Storage
NAS
Local PC for instant recording
Mirco SD card 128GB
Web Viewer
IE, Chrome, Firefox, Safari
Management Software
Smart PSS, DSS, Easy4ip
Smart Phone
IOS, Android
Certifications
Certifications
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
Interface
Video Interface
N/A
Audio Interface
1/1 channel In/Out
RS485
N/A
Alarm
1 channel In: 5mA 5VDC
1 channel Out: 300mA 12VDC
Electrical
Power Supply
DC12V, PoE (802.3af)(Class 0)
Power Consumption
Így is ismerheti: IPC HDBW 4231 E ASE 0280 B, IPCHDBW4231EASE0280B, IPC HDBW4231E ASE 0280B, IPC HDBW4231E-ASE-0280B, IPC-HD BW4231E-ASE-0280 B
